OPTIWAVE 5200

Radar (FMCW) level transmitter for liquids in storage and process applications

  • Continuous, non-contact level measurement in storage and process tanks
  • 10 GHz radar, Horn and Wave Horn antennas
  • Measuring range: 0…30 m / 98 ft
  • -60…+250°C / -76…+482°F; -1…40 barg / -14.5…580 psig (higher on request)
  • Icon/Logo Security Integrity Level 2 (SIL 2)

OPTIWAVE 5200 C – Compact / horizontal version with PP Wave Horn antenna

Radar (FMCW) level transmitter OPTIWAVE 5200 C – Compact / horizontal version with PP  Wave Horn  antenna

The OPTIWAVE 5200 is a 2-wire 10 GHz radar (FMCW) level transmitter for liquids, pastes and slurries. It is particularly suited for continuous, non-contact level measurement in storage or process tanks with small process connections or where it is difficult to access the tank roof (remote version recommended).

The OPTIWAVE 5200 is SIL2-compliant according to IEC 61508-2 for Safety Instrumented Systems (SIS). Its PP or PTFE Wave Horn antenna options make it ideal for measuring the level of corrosive liquids. Additional ease of use comes from the quick coupling system which permits 360° rotation of the housing or its removal under process conditions.

Product highlights

  • Gasket-free PP or PTFE Wave Horn antennas for corrosive media
  • Metallic Horn antennas:
    • METAGLAS® second sealing barrier for toxic and dangerous liquids
    • Purging system for antenna cleaning
    • Antenna extensions up to 1 m / 3.28 ft
    • Bend antenna extensions for tanks with internal obstructions
    • Heating / cooling systems prevent crystallization or build-up
  • Metallic Wave Guide antenna for clean liquids
  • Quick coupling system: converter is rotatable and removable under process conditions
  • Converter compatible with all BM70x process connections
  • Horizontal or vertical housing position
  • Remote converter up to 100 m / 328 ft away from the antenna
  • 2-wire: 4…20 mA/HART®6, PROFIBUS PA, FOUNDATION™ Fieldbus
  • ±5 mm / ±0.2” accuracy
  • Keypad accessible without opening the housing cover
  • PACTware™, HART® DD and DTM provided free of charge with full functionality
  • SIL2-compliant according to IEC 61508-2

Typical applications

General

  • Level measurement in storage and process tanks:
    • with difficult access to the tank roof (remote version)
    • where readings are eased by horizontal or vertical housing positions
    • in hazardous areas with temperatures up to +250°C / +482°F
    • where FOUNDATIONTM fieldbus or PROFIBUS PA communication is required
  • Standard applications or applications with corrosive products where a cost-effective solution is required
  • Typical BM 702 A applications as well as BM 70x converter replacement

Chemical industry

  • Fertilizers, solvents, alcohols, bases, acids, ferric chloride

Power industry

  • Condensates, cooling water

Oil and gas industry

  • Hydrocarbons

Water and wastewater industry

  • Flocculent, sludge

Accessories for this product

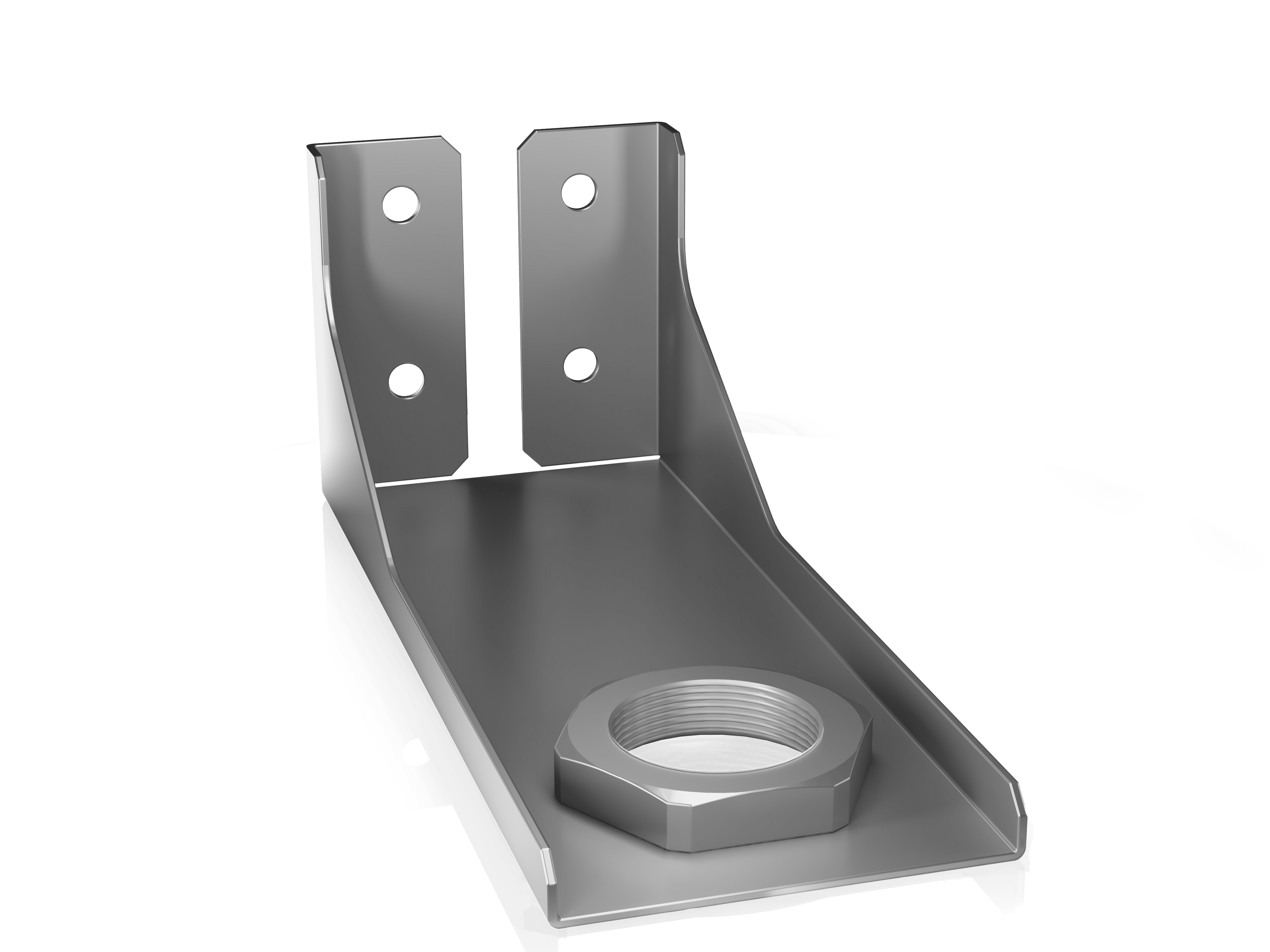

Wall-mounted bracket

Wall-mounted bracket

Antenna aiming kit for OPTIWAVE level transmitters

  • L-shaped bracket to attach radar level transmitters firmly to a wall
  • Only suitable for radars with G1 or G1½ process connection
  • Material: Stainless steel (1.4404 / 316L)
  • Bracket length: 250mm / 9.84”

Applications

Technical data

Measurement principlesRadar
Level measurement typeContinuous measurement
Measured mediaLiquids, Pastes, Slurries
Contact to measured mediumNo
Interface measurementNo
Measuring range (liquids)1…30 m/
3.3…98 ft
Process pressure (relative)-1…40 barg/
-14.5…580 psig
Process temperature-60…+250°C/
-76…+482°F
Wetted partsAustenitic stainless steel (1.4404/316L), Polypropylene (PP), Polytetrafluoroethylene (PTFE)
Process sealsEthylene propylene diene monomer (EPDM), Fluorocarbon-based synthetic rubber (FKM/FPM), Kalrez® 6375, PFA
Accuracy (liquids)±5 mm/
±0.2 in

Approvals/Standards

Certificates/Approvals ExATEX, cFMus, EAC, IECEx, INMETRO, NEPSI
Certificates/Approvals SafetySIL2
Certificates/Approvals OthersCRN, NACE
Ingress protectionIP66/67, NEMA4X/6P

Communication

Digital outputsFOUNDATION™ fieldbus, HART®, PROFIBUS PA
Analogue outputs4…20 mA

Process connections

Flange connectionsEN (1092-1): DN50…200
ASME (B 16.5): 2…8"
Thread connectionsMale:
G1 ½, G1 ¾, G2
1 ½ NPT, 1 ¾ NPT, 2 NPT
